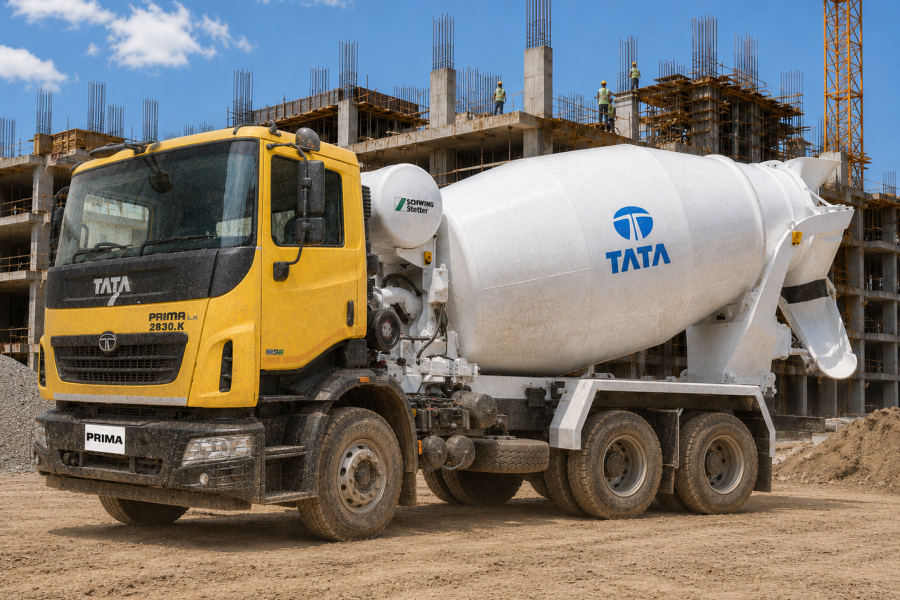

Key Specifications of Tata Prima 2830.K Repto

Tata Prima 2830.K Repto Specifications

Specification	Value
Engine And Transmission
Engine Description	Cummins ISBe 6.7 OBD-II
Engine Capacity	6700 cc
Maximum Power	224kW@2300rpm
Maximum Torque	1100Nm@1100-1700rpm
Gear Box	9 Speed
Clutch	Single Plate Dry Friction
Cabin Type	Prima Non Sleeper Cabin
Gradeability	79%
Clutch Diameter	430 mm
Tyre and Brake
Front Tyre	295/90 R20
Rear Tyre	295/90 R20
Tyre Type	Nylon
Numbers Of Tyres	12
Front Brake	Drum
Rear Brake	Drum
Service Brake	New iCGT Brake
Suspension & Axle
Front Suspension	Parabolic Leaf Spring
Rear Suspension	TML Bogie Suspension
Front Axle	Heavy Duty Forged I Beam Reverse Elliot Type
Rear Axle	Single Reduction, Heavy Duty Rear Axle With Differential Lock
Chassis Type	Heavy Duty Straight Frame
Dimensions
Wheelbase	4550 mm
Kerb Weight	13000 kg (13 Ton)
Gross Vehicle Weight	28000 kg (28 Ton)
Payload Capacity	15000 kg (15 Ton)
Fuel Tank capacity	365 Liters
Features
Air Conditioner	Yes
Adjustable Driver Seat	Yes
Additional Features	Mode Shift Advisor, Multimode FE Switch, Engine Brake, Fleetedge Telematics, Fuel Monitoring System, FOTA – Firmware Over The Air, Gear Shift Advisor
Warranty	6 Years or 600000 km
