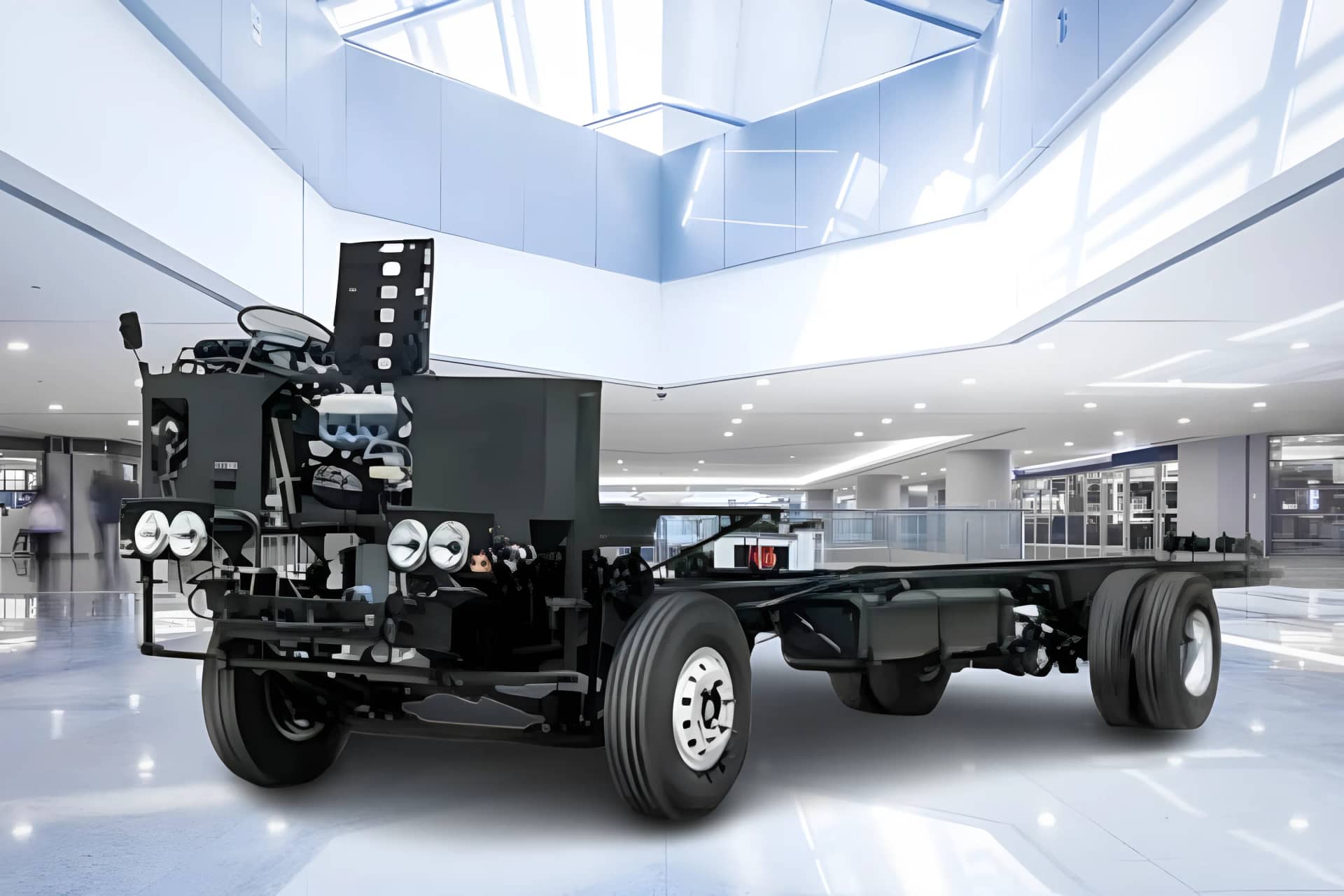

Eicher 2112 M Specifications

Specification	Value
Engine And Transmission
Engine Description	E494
Engine Capacity	3770 cc
Maximum Power	120kW@2600 rpm
Maximum Torque	500Nm@1200-1800 rpm
Number of Cylinders	4
Gear Box	6 Forward + 1 Reverse
Clutch Type	Dry, Single Plate
Clutch Diameter	330 mm
Alternator	110 A
Tyre, Brake And Suspension
Front Tyre	9 R20 16PR
Rear Tyre	9 R20 16PR
Tyre Type	Radial
Wheel Size	Steel
Front Brake	Dual Circuit 'S' Cam Full Air brakes
Rear Brake	Dual Circuit 'S' Cam Full Air brakes
Steering Type	Power Steering
Front Suspension	Wevellar
Rear Suspension	Wevellar
Chassis Type	Domex 650
Chassis Parameter	210x76x6 mm
Dimensions
TCD (Turning Circle Diameter)	19.4 m
Length	9856 mm (32.34 ft)
Width	2413 mm (7.92 ft)
Height	2785 mm (9.14 ft)
Wheelbase	5330 mm (17.49 ft)
Ground Clearance	232 mm (0.76 ft)
Gross Vehicle Weight	13100 kg
Fuel Tank capacity	190 Litres
Additional Tank Capacity	19 Litres
Features
Air Conditioner	No
Emergency Exit	Yes
Emergency Kit	Yes
Battery	12V 130 Ah
